HOW TO MEASURE FOR YOUR BLINDS

For accuracy, it is recommended that all measurements are taken using a steel tape.

INSIDE RECESS (for opening out doors only)

1. Measure inside width in several places, particularly at the top of the recess.

2. Measure inside drop in several places.

3. Please ensure that there is a clearance from any obstructions.

OUTSIDE RECESS (for opening in doors only)

When the blind is fitted outside the recess you need to specify the overall size you require. It is recommended that the blind projects at least 75mm (3") over the whole recess.
1. Measure and record the width and drop you would like.

FITTING OPTIONS

Please choose your option carefully, it is very important so your blind isn't hitting the main handle.

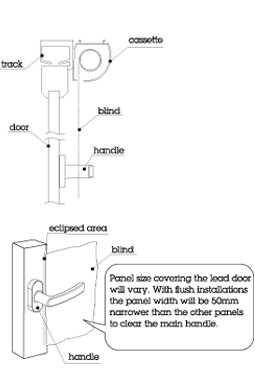

Recommended Installation

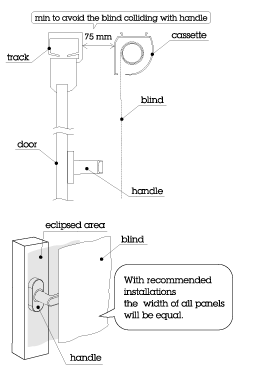

Flush Installation
